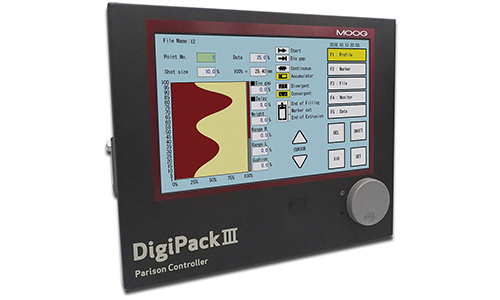

New Digital Parison Controller (DigiPack III) 最新デジタル・パリソンコントローラ(DigiPack III)
DigiPack III is evolved from our popular previous Parison Controller, DigiPack II.
DigiPack III has larger, more durable touch screen for easy operation.
By adopting a touch screen, a user is able to select parameters directly and input numerical values with a numeric keypad for quicker set up. The operation method is the same as DigiPack II, so current users do not need to learn new operations.
Moreover, the rotary knob is still there with the same function, without losing the operability of the current DigiPack controller.
The device dimension and mounting pattern is the exactly same as DigiPack II.
DigiPack IIIは、当社の人気のパリソンコントローラDigiPack IIから、正常進化しました。
DigiPack IIIには、より大きく耐久性のあるタッチスクリーンを搭載しました。
タッチスクリーンを採用することにより、パラメータの直接選択やテンキーによる数値入力が可能となり、迅速な設定が可能となりつつも、DigiPackIIの操作方法はそのまま踏襲してありますので、新しく覚えることはほとんどありません。
またこれまでのDigiPackの操作性を失わないよう、ロータリーノブもそのままの機能で継承しております。
また、DigiPack IIと筐体サイズ、取り付け面が同じなので、置き換えの為の互換性も完璧です。
Specifications | |
---|---|
Number of set points | Maximum 200 pts 10 to 200 pts selectable |
Communication port | Ethernet(Tcp/IP) |
Language | English / Chinese / Japanese |
Accurate position feedback | DCDT ± 10V Core Position Liner pot 0-10V Accumulated Position |
Screen | Color XVGA 1280 x 800 Touch screen |
Memory function | External memory: USB 32GB max. Supported Format: FAT32 |
Protective function | Password-protected when the Setup window shifts |
Power supply | DC24V (excluding 0.5A external loads) w/Power supply check lamp |
Dim./weight | 288 (W) x 240(H) x 55(D) / 3.6Kg |
