モーションシステム

信頼性。専門知識。サポート。

アクチュエータのストローク長とペイロードは、豊富なバリエーションからお選びいただけます。当社の全電動ソリューションは、99.8%を超える稼働率を誇る比類のないレベルの忠実度と信頼性を提供し、お客様の稼働率と収益性の向上に貢献します。

多様なシステムで、今日のシミュレーション課題への対応をサポートします。高い忠実度を誇る最新技術により、お客様の要件を満たし、それを上回るパフォーマンスを実現します。専門家によるグローバルサポート体制により、いつでもお電話一本でサービスをご利用いただけます。

お客様のニーズに最適なシステムを見つけるお手伝いをするため、標準システムと特別システムの2つのシステムファミリーをご用意しています。標準システムは、迅速な納品と最高の価値を実現するよう最適化されています。特別システムは、お客様のあらゆる特別な要件にほぼお応えします。

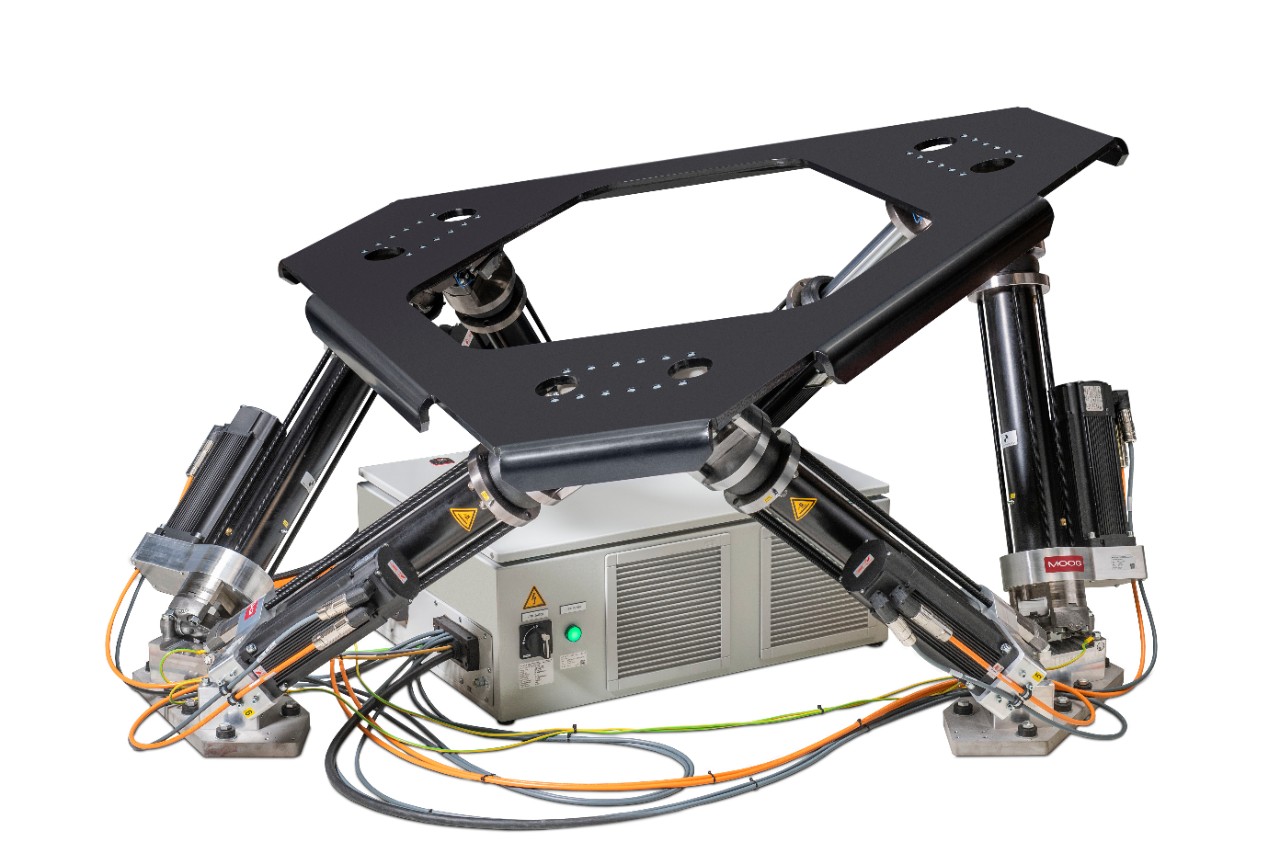

スモールモーションシステム

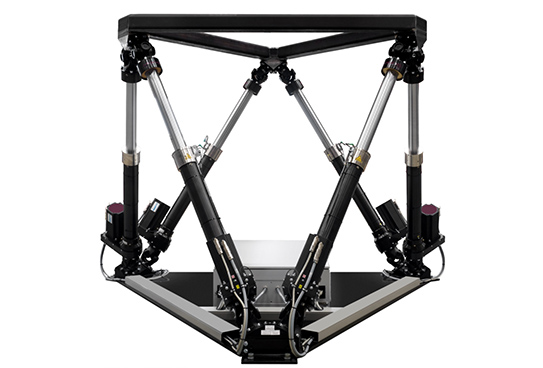

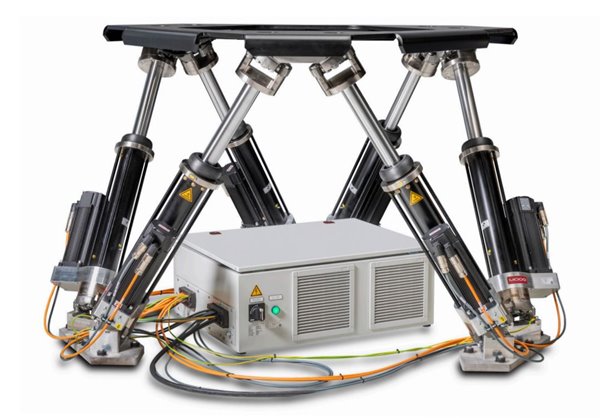

E12シリーズ: MB-E-6DOF/12/500KG

6DOF/12/1000KG
積載重量 500 kg / 1,102 lb
  Heave (max): ±0.19 m (±7.5 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±6.0 m/s² (±0.61 g) ±0.60 m/s (±23.6 in/s)
Sway ±6.0 m/s² (±0.61 g) ±0.60 m/s (±23.6 in/s)
Heave ±8.0 m/s², ±8.2 g ±0.50 m/s (±19.7 in/s)
Roll ±300°/s² ±40.0°/s
Pitch ±300°/s² ±50.0°/s
Yaw ±500°/s² ±50.0°/s

E12 シリーズ: MB-E-6DOF/12/1500KG

6DOF/12/1000KG
積載重量 1,500 kg / 3,307 lb
  Heave (max): ±0.19 m (±7.5 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±6.0 m/s² (±0.61 g) ±0.60 m/s (±23.6 in/s)
Sway ±6.0 m/s² (±0.61 g) ±0.60 m/s (±23.6 in/s)
Heave ±8.0 m/s² (±0.82 g) ±0.50 m/s (±19.7 in/s)
Roll ±300°/s² ±40.0°/s
Pitch ±300°/s² ±50.0°/s
Yaw ±500°/s² ±50.0°/s

E26 シリーズ: MB-E-6DOF/26/1800KG

6DOF/12/1000KG
積載重量 1,800 kg / 3,968 lb
  Heave (max): ±0.41 m (±16.1 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge 7.0 m/s² (0.7 g) 0.80 m/s (31.4 in/s)
Sway 7.0 m/s² (0.7 g) 0.80 m/s (31.4 in/s)
Heave 10.0 m/s² (1.0 g) 0.60 m/s (23.6 in/s)
Roll 250°/s² ±35.0°/s
Pitch 250°/s² ±35.0°/s
Yaw 500°/s² ±40.0°/s

P26 シリーズ: MB-EP-6DOF/26/3000KG

6DOF/12/1000KG
積載重量 3,000 kg / 6,613 lb
  Heave (max): ±0.41 m (±16.1 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±6.3 m/s² (0.63 g) ±0.80 m/s (31.4 in/s)
Sway ±6.3 m/s² (0.63 g) ±0.80 m/s (31.4 in/s)
Heave ±9.0 m/s² (0.90 g) ±0.60 m/s (23.6 in/s)
Roll ±200°/s² ±35.0°/s
Pitch ±200°/s² ±35.0°/s
Yaw ±400°/s² ±40.0°/s

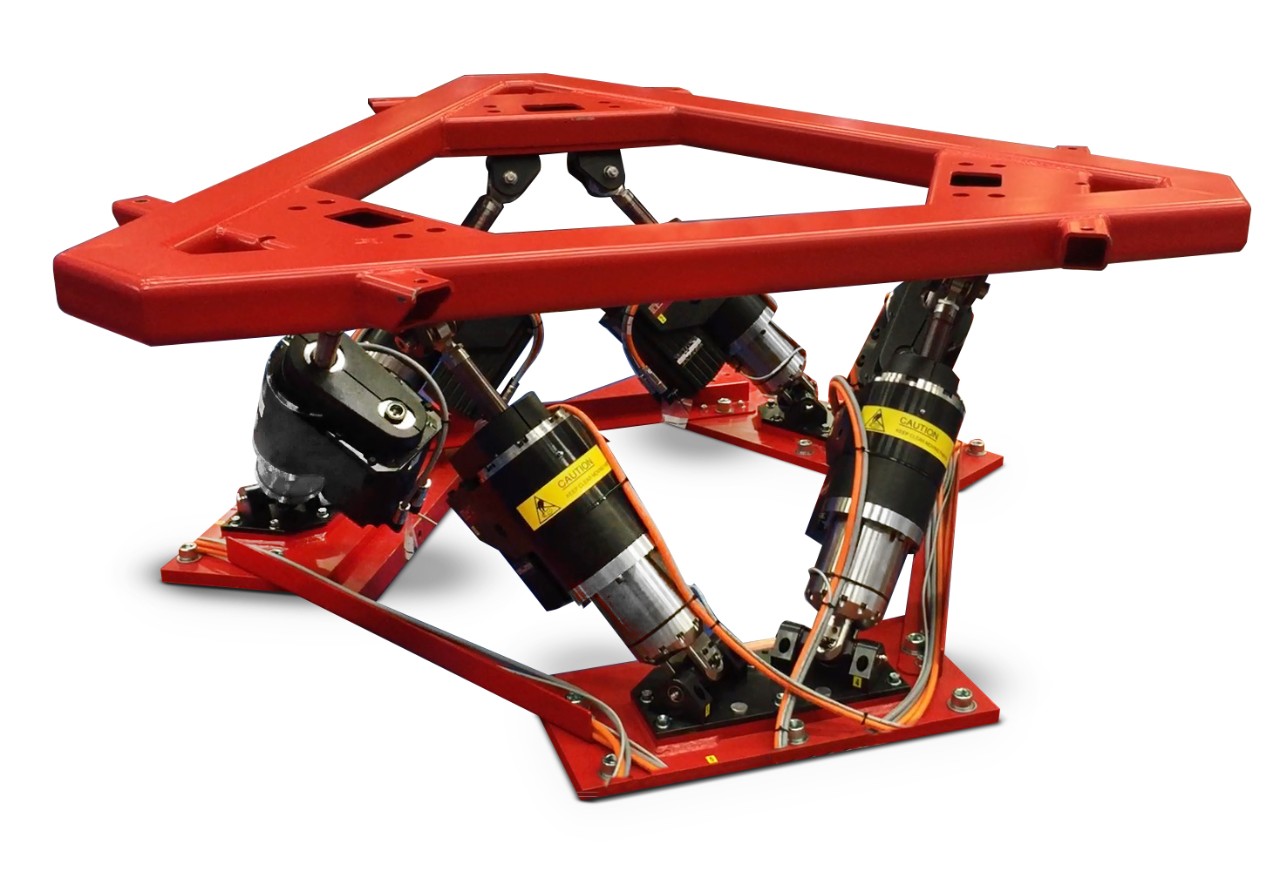

6DOF/10/3000KG

6DOF/12/1000KG
積載重量 3,091 kg / 6,614 lb
  Stroke: 0.254 m (10.0 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±3.0 m/s² (0.3 g) ±0.30 m/s (1.8 in/s)
Sway ±3.0 m/s² (0.3 g) ±0.30 m/s (1.8 in/s)
Heave ±3.0 m/s² (0.3 g) ±0.30 m/s (1.8 in/s)
Roll ±300°/s² ±30.0°/s
Pitch ±300°/s² ±30.0°/s
Yaw ±300°/s² ±30.0°/s

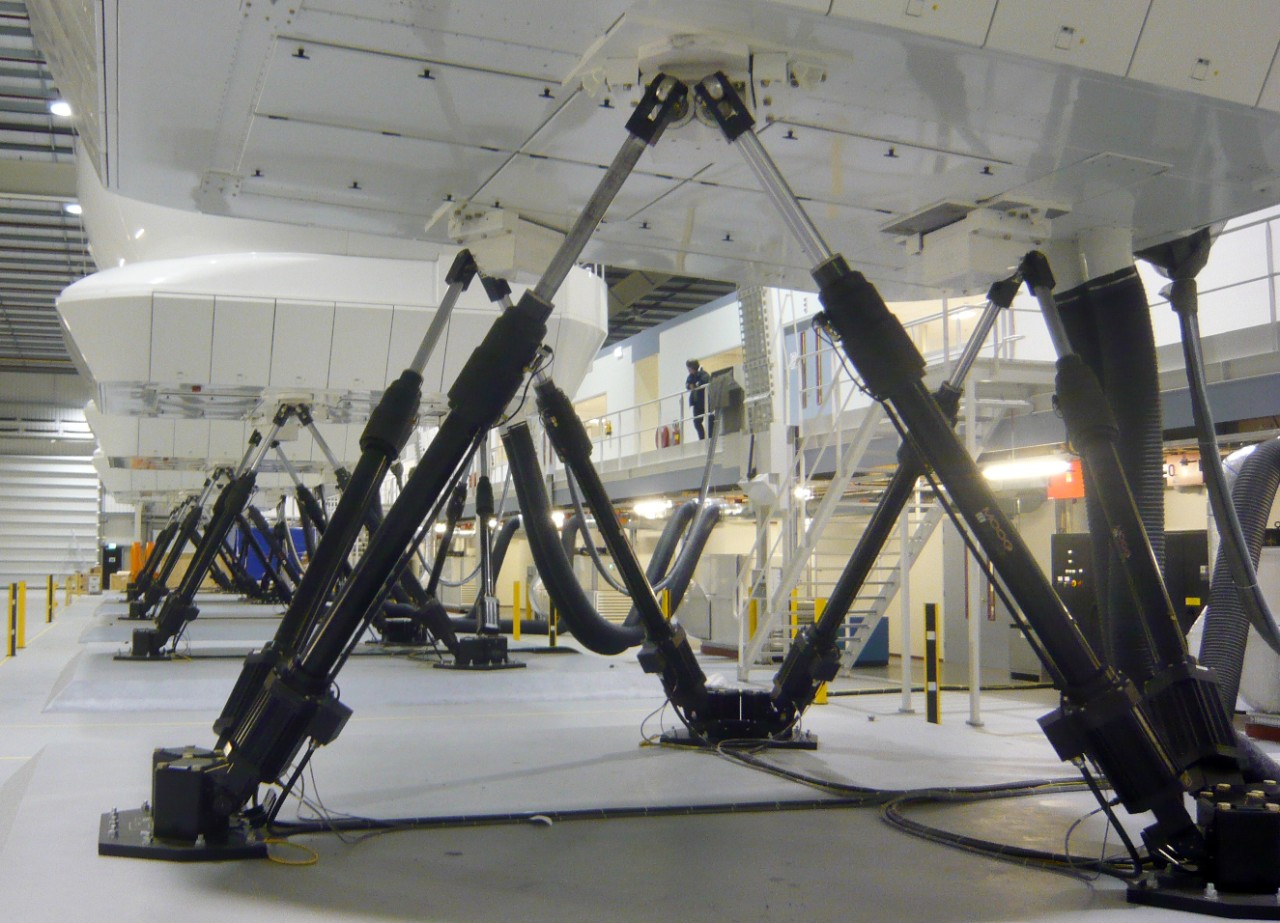

大型モーションシステム

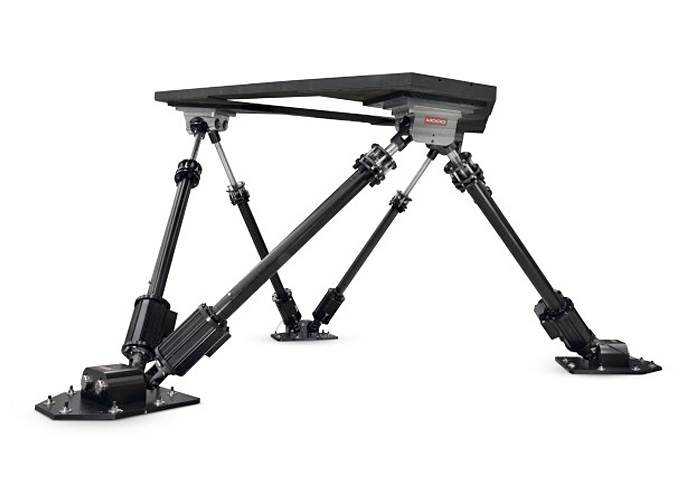

E60 シリーズ: MB-E-6DOF/60/14000KG

6DOF/12/1000KG
積載重量 14,000 kg / 30,865 lb
  Heave (max): ±0.97 m (±38.4 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±5.9 m/s² (0.6 g) ±1.0 m/s (±39.4 in/s)
Sway ±5.9 m/s² (0.6 g) ±1.0 m/s (±39.4 in/s)
Heave ±7.9 m/s² (0.8 g) ±0.80 m/s (±31.5 in/s)
Roll ±150°/s² ±22.0°/s
Pitch ±150°/s² ±21.0°/s
Yaw ±250°/s² ±25.0°/s

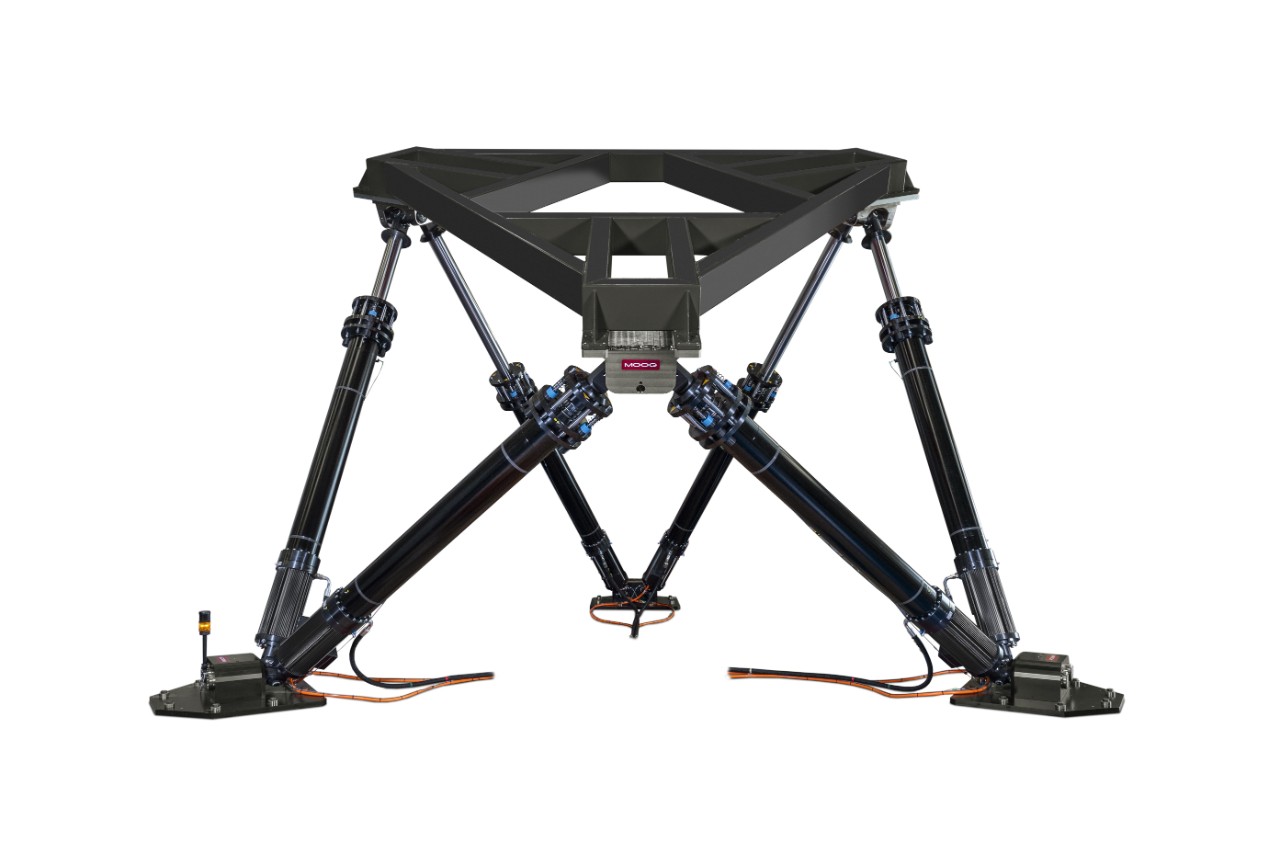

P60 シリーズ: MB-EP-6DOF/60/14000KG

6DOF/12/1000KG
積載重量 14,000 kg / 30,865 lb
  Heave (max): ±0.960 m (±37.8 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ± 6.5 m/s2 (0.66 g) ±1.00 m/s (39.4 in/s)
Sway ± 6.5 m/s2 (0.66 g) ±1.00 m/s (39.4 in/s)
Heave ±9.0 m/s² (0.92 g) ±0.80 m/s (31.5 in/s)
Roll ±150°/s² ±22.0°/s
Pitch ±150°/s² ±21.0°/s
Yaw ±250°/s² ±25.0°/s

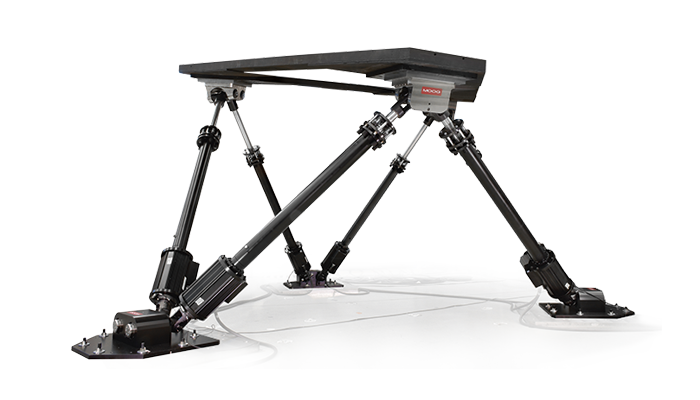

E60 シリーズ: MB-E-6DOF/62.5/14000KG

6DOF/12/1000KG
積載重量 14,000 kg / 30,865 lb
  Heave (max): ±1.00 m (±39.4 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±5.9 m/s² (0.6 g) ±1.00 m/s (39.4 in/s)
Sway ±5.9 m/s² (0.6 g) ±1.00 m/s (39.4 in/s)
Heave ±7.9 m/s² (0.8 g) ±0.80 m/s (31.5 in/s)
Roll ±150°/s² ±22.0°/s
Pitch ±150°/s² ±21.0°/s
Yaw ±250°/s² ±25.0°/s

E60 シリーズ: MB-E-6DOF/42/14000KG

6DOF/12/1000KG
積載重量 14,000 kg / 30,865 lb
  Heave (max): ±0.70 m (±27.7 in) Degrees of Freedom: Six
Specifications Acceleration Velocity
Surge ±5.9 m/s² (0.6 g) ±1.00 m/s (39.4 in/s)
Sway ±5.9 m/s² (0.6 g) ±1.00 m/s (39.4 in/s)
Heave ±7.9 m/s² (0.8 g) ±0.80 m/s (31.5 in/s)
Roll ±150°/s² ±22.0°/s
Pitch ±150°/s² ±21.0°/s
Yaw ±250°/s² ±25.0°/s

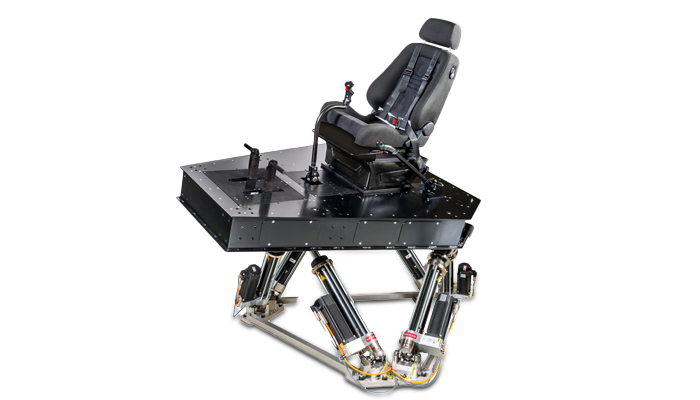

VRフライトデモンストレーター


VR Flight Demonstrator

モーション システム、HMD モーション補正ソフトウェア、コントロール ローディング、モーション プラットフォームを使用した当社の機能を紹介する、没入型 VR フライト デモンストレーターを体験してください。

詳細を見る

振動プラットフォームシステム


VR Flight Demonstrator

Moog 振動プラットフォーム システムは、回転翼航空機のフルフライト シミュレータ (FFS) の忠実度を高めるために設計された最先端の電空圧ソリューションです。

詳細を見る

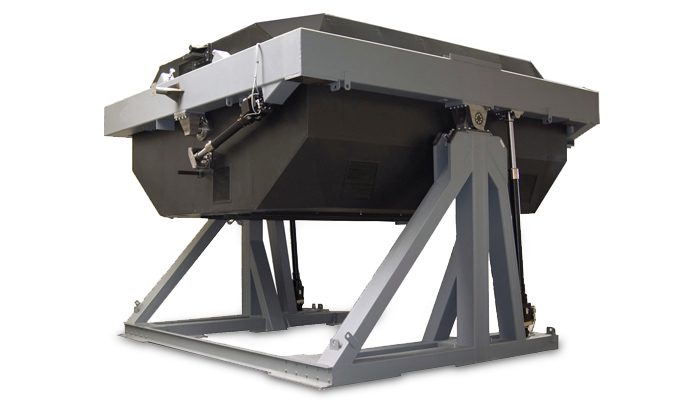

スペシャルモーションシステムズ


カスタマイズが必要なパフォーマンス エンベロープが必要な場合、Moog の製品エンジニアリングおよびサポート チームが確実にお客様のニーズにお応えします。

詳細を見る
